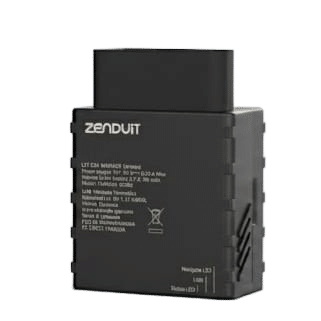

ZenTRACK OBD
Plug & Play real-time vehicle tracking, engine data, BLE gateway, and instant event detection.
Solutions Offered
Tracking and Connectivity Combined
Real-Time Location with Offline Support
Location data reported within seconds to real-time, and contains internal data storage for offline use.
Engine Data
Reads key vehicle data like VIN, odometer, fuel level, DTC and more.
ELD
Automatically records driving time to comply with RODS and HOS regulations.
BLE Gateway
Compatible with BLE temperature, humidity, door status sensors, and wireless relays for advanced monitoring.
Driver Safety
Measures driver performance and ensures peace of mind with crash detection for quick emergency response.
Disconnection Alerts
Sends alerts when the device is disconnected from the power source for full visibility.
Technical Features
Design
Dimensions
67.2mm x 49.6mm x 25mm (2.6″ x 2.0″ x 1.0″)
Weight
63g
Operating Temperature (Sans Battery)
-40°C to +85°C (-40°F to +185°F)
Network & Connectivity
Cellular Module
Quectel BG95-M1
Cellular Network
LTE Cat M1
Supported Bands
LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/
B18/B19/B20/B25/B26/B27/B28/B66/B85
Bluetooth® Specification
4.0 and BLE
Location & Navigation
Satellite Constellations
GPS, Glonass, Beidou, Galileo, QZSS
Accuracy
< 3 m
Protocols
NMEA, GGA, GGL, GSA, GSV, RMC, VTG
Durability & Power
Protection Rating
IP41
Input Voltage
10V – 30V DC (includes overvoltage protection)
Backup Battery
115 mAh Li-ion 3.7V Battery
Get the Full Product Details
Frequently Asked Questions
What is the OBD installation process?
Simply plug the tracker into the OBDII port for instant connectivity and tracking!
What data can I monitor with this device?
The device reads data like VIN, odometer, fuel levels, DTC, and much more.
Is it compatible with BLE sensors?
Yes, it supports BLE 4.0 sensors such as temperature, humidity, door status, and wireless relays.
How does crash detection work?
With the built-in accelerometer, the ZenTRACK OBD can instantly detect a collision and send an alert to keep your drivers safe.
